Traps for indoor use

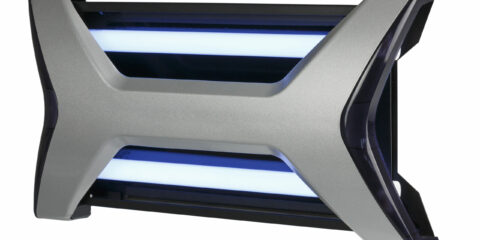

x-trap 50
With its innovative design, the x-trap 50 is recommended for use in homes, offices, shops and restaurants.The X-trap has a specially designed front grid which optimizes the attraction potential. Executed with in a Robust metal housing. Once the insects enter the x-trap, they will be effectively controlled by means of a centrally placed glue board.
WALL MOUNTING UNIT (4 positions)
The discreet 80 m² insect control unit
ASTRON UV-A lamps [Fluorescent]
In the heart of the unit is a ASTRON UV-A lamp available: the lamp is specifically designed to match the fly’s vision spectrum with the lamp’s output, for optimum attracting power.
Glueboards
Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.
With its innovative design, the X-trap 50 is recommended for use in:
- Shops
- Offices
- Hotels
- Hospitals
- Food
- Beverage
- Storage
- Warehousing
- Pharma
- Restaurants & Kitchens.
- Robust metal housing offers durability.
- Durable quality components, industrial design.
- 2 year full guarantee on the mechanical aspects.
The X-trap has a specially designed front grid which optimizes the attraction potential. Executed with in a Robust metal housing. Once the insects enter the x-trap, they will be effectively controlled by means of a centrally placed glue board.
Easy to service, stylish and effective; the X-trap 50E offers it all.
10 Reasons to use
- Highly effective due to front, side, top & bottom access for flying insects
- Unit can be mounted in 4 positions on the wall or on the ceiling
- Compact design, blends into the background
- Proven design offers a trouble free life time of min 5 years
- Unit can take a variety of glue boards, which allows for a trouble free switch
- CE approved offers sales opportunities around the globe
- Unique model, available exclusive
- Philips electronic ballast offers energy saving & 40.000 hrs
- Unit is HACCP compliant (2x 15 Watt Astron Shatterproof lamps)
- Easy to clean Front of House design & Industrial design
Technical Specifications
Electrical supply 220-240 V ~ 50-60 Hz
UV-A lamp ASTRON UV-A
Ballast Electronic 40.000 hrs
Standards EMC / CE / RoHS / Reach compliant
Dimensions box Indicative 538 x 113 x 311 mm (L x W x H)
Gross weight 4,5 kg
Pallet volume 50 pieces
Pallet dimensions 1200 x 800 x 2100 mm (L x W x H)
Storage conditions Dry conditions
Quality procedure ISO 9001
Life span Min 5 years
Consumables Glueboard and 15 Watt UV-A lamp
Replacement interval Annually (min) 4x Glueboard & 2x UV-A lamp
Appliance cable 3 pole cable of 1,7 m with tailored country plug
Mounting position Wall mounting in 4 directions or Ceiling mounting
Glue rail Can hold a range of different sized boards
Environmental aspects Non applicable
Marketing tools Leaflet / photo’s / banner / presentation
MSDS Available for lamp and glue board
UV-A lamp ASTRON UV-A
Ballast Electronic 40.000 hrs
Standards EMC / CE / RoHS / Reach compliant
Dimensions box Indicative 538 x 113 x 311 mm (L x W x H)
Gross weight 4,5 kg
Pallet volume 50 pieces
Pallet dimensions 1200 x 800 x 2100 mm (L x W x H)
Storage conditions Dry conditions
Quality procedure ISO 9001
Life span Min 5 years
Consumables Glueboard and 15 Watt UV-A lamp
Replacement interval Annually (min) 4x Glueboard & 2x UV-A lamp
Appliance cable 3 pole cable of 1,7 m with tailored country plug
Mounting position Wall mounting in 4 directions or Ceiling mounting
Glue rail Can hold a range of different sized boards
Environmental aspects Non applicable
Marketing tools Leaflet / photo’s / banner / presentation
MSDS Available for lamp and glue board
