Traps for indoor use
OMNNIVEO 3
With its discreet design, the Omniveo insect control unit (with Fluorescent or LED lamps) is recommended for use in shops and restaurants and dry industrial environments. The unit can be wall mounted; centered euro-slot mounting holes offers easy maintenance & service.

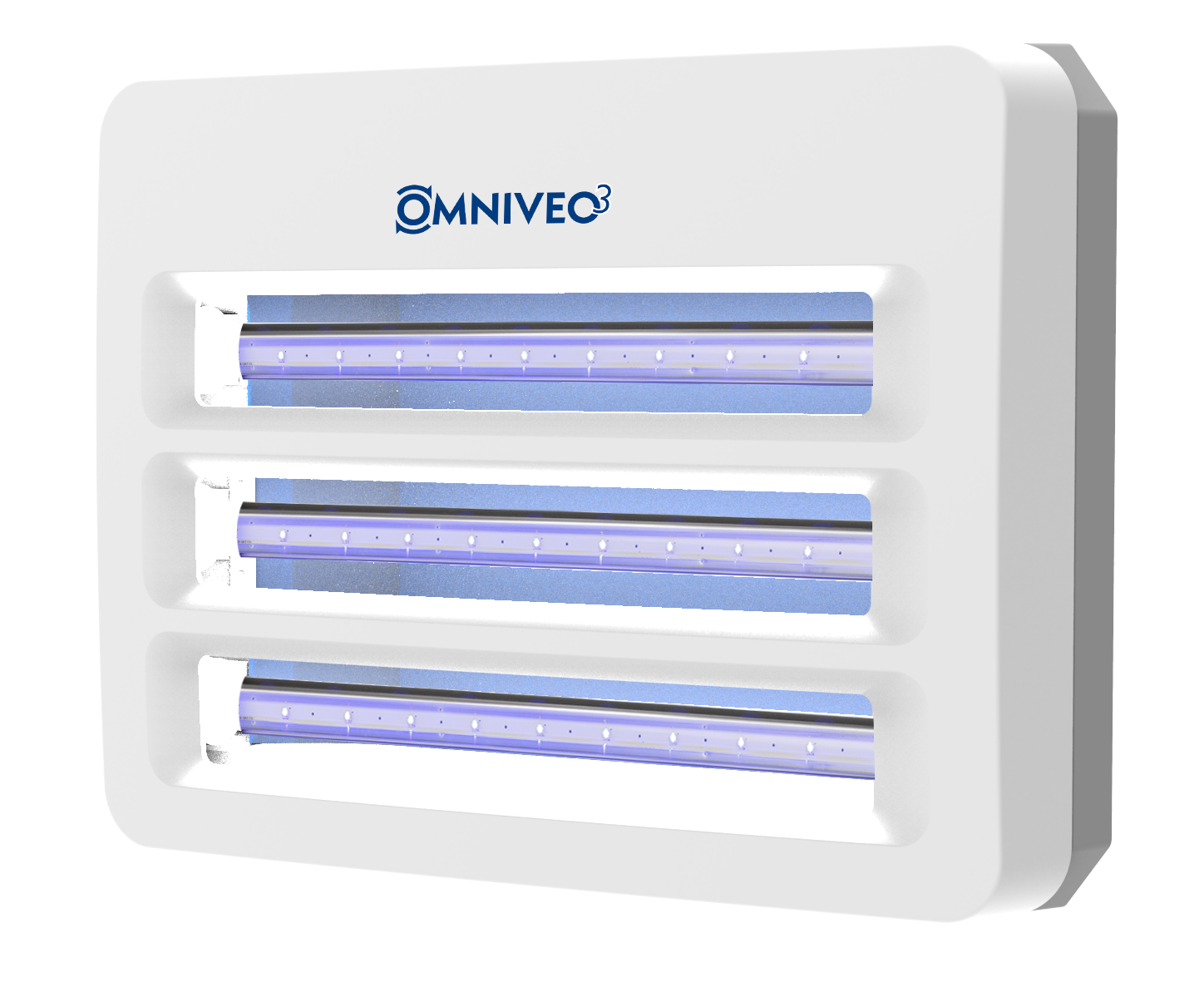

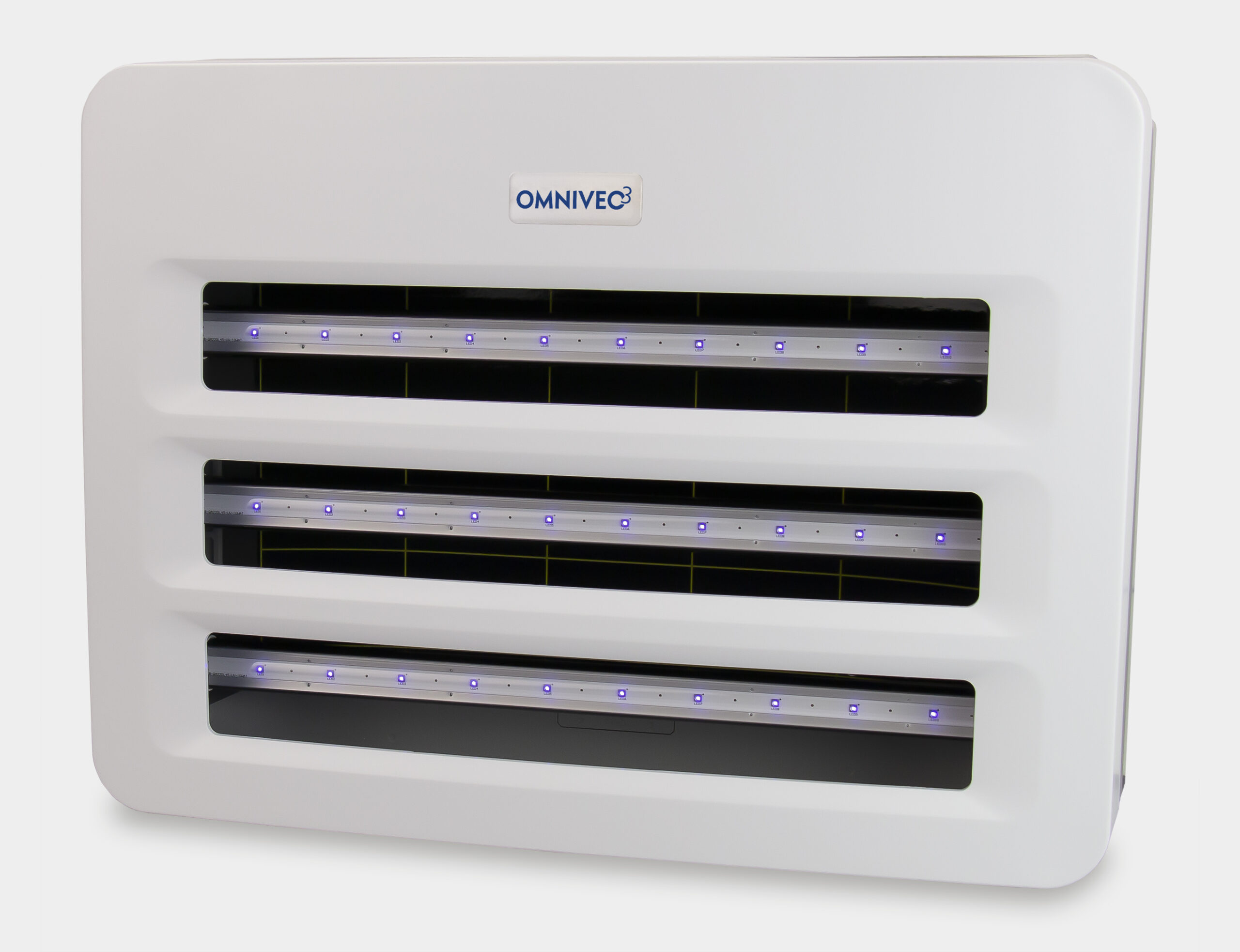

OMNIVEO 3
WALL MOUNTING UNIT
- 220-240V ~ 50-60 Hz (Other supply upon request)
- 100-240V ~ 50-60 Hz (Other supply upon request)
- CE / UKCA / EMC / LVD / RoHS / REACH / ISO 9001 compliant
The discreet & functional up to 150 m² wall mounted unit
LED lamps for OMNIVEO
LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)
Traditional lamps for OMNIVEO
Astron is the Greek word for “Bright Star”, which is exactly what these lamps offer. The Astron UV lamps offer a reliable UV output.
Glueboards
Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.
Optional: OMNIVEO 2 or 3 SMARTCONTROL MODULE Energy saving & effective Smart control, go hand in hand
Omniveo wall mounting system.
A new generation of insect control units suitable for real time monitoring of flying insects. With its discreet design it’s recommended for use in shops and restaurants and dry industrial environments.
Real-time monitoring of insects is a huge leap forward.
Easy to service, stylish and effective.
Smart control
The Omniveo Smart Control works through new innovations. By means of a high speed camera. The camera records insects which are lured into the trap onto a glue board by an ultraviolet light source. The data is immediately forwarded to the user.
This is possible thanks to worldwide connectivity over KPN’s LTE-M network (with fallback on 2G) and the IoT platform named Cockpit.
OMNIVEO 3
Electrical supply: 220-240V ~ 50-60 Hz (Other supply upon request) / LED: 100-240V ~ 50-60 Hz
Effective area: 80 – 150 m2
IP rating: IP 20 or IP 65 (Suited for use in dry or wet areas)
Lamp: 3x 15 W ASTRON UV-A lamps in Fluorescent or 3x 9 W ASTRON LED execution
Glue board: Scannable blue board technology, multiple size board placement
Approvals: CE / UKCA / EMC / LVD / RoHS / REACH / ISO 9001 compliant
Guarantee: 2 years on mechanical & electrical performance
Ballast: A Philips Electronic Ballast (only fluorescent lamps), 40k hrs lifetime (LED)
Housing: Plastic chassis
- 3x 15 Watt UV-A ASTRON shatterproof / 3x 9 Watt ASTRON LED
- IP 20 or IP 65 (Suited for use in dry or wet areas)
- Reaching CE/ UKCA / RoHS / REACH / ISO 9001 norm
- Recyclable parts
