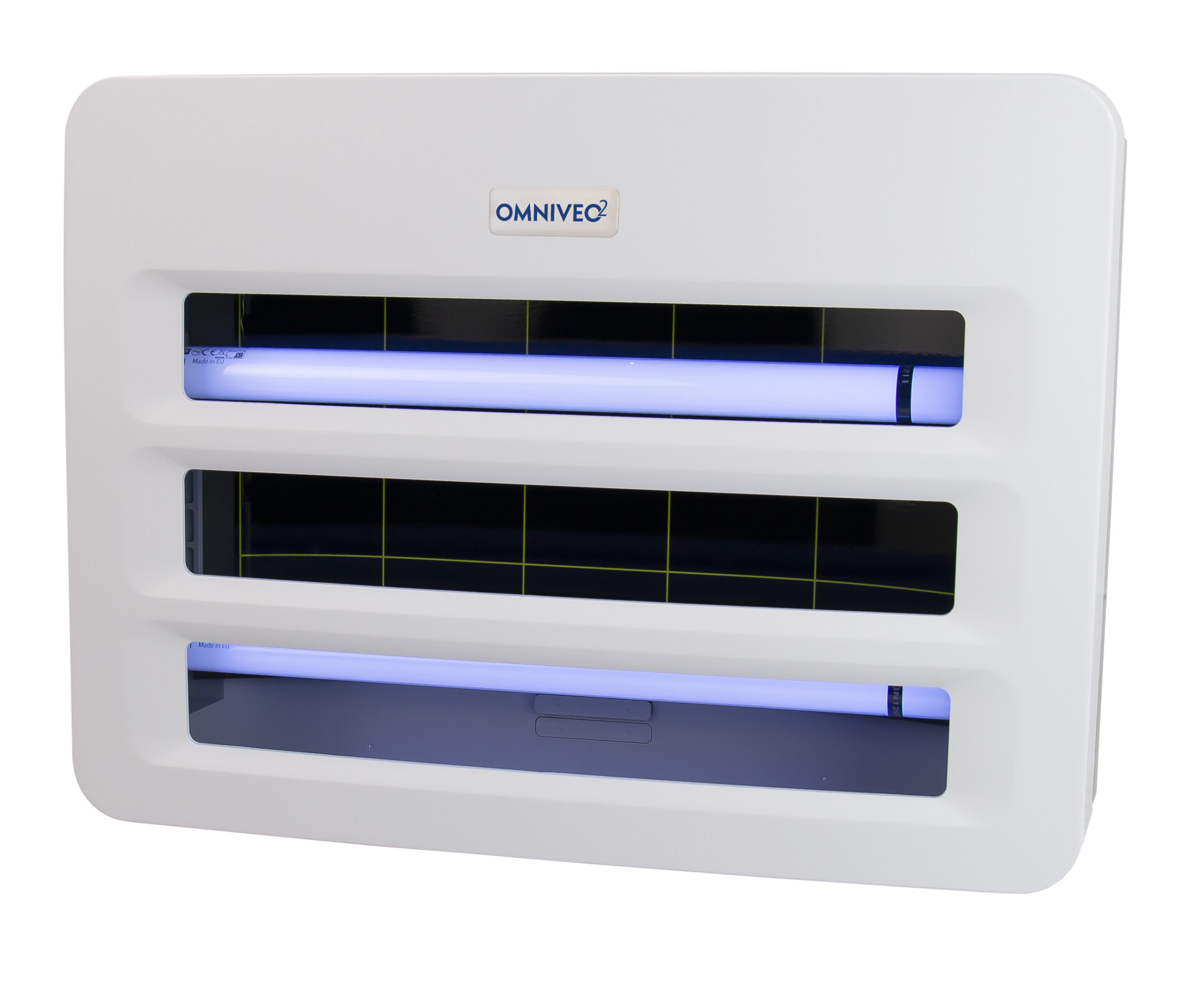

OMNNIVEO 2



With its discreet design, the Omniveo insect control unit (with Fluorescent or LED lamps) is recommended for use in shops and restaurants and dry industrial environments. The unit can be wall mounted; centered euro-slot mounting holes offers easy maintenance & service.

OMNIVEO 2

WALL MOUNTING UNIT



  • 220-240V ~ 50-60 Hz (Other supply upon request)
  • CE / EMC / LVD / RoHS / REACH / ISO 9001 compliant

SKU:

2.05.4000

Category:

The discreet & functional 100 m² wall mounted unit

LED lamps for OMNIVEO

LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)

Traditional lamps for OMNIVEO

Astron is the Greek word for “Bright Star”, which is exactly what these lamps offer.  The Astron UV lamps offer a reliable UV output.

Glueboards

Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.

3 positions of your own glue board

The OMNIVEO provides 3 positions for placing a glue board. Use your favourite glue board. Choose one position by clicking on the postion holders you can hold the board in place.

Smart protection by opening unit

The hinged front with magnet lock ensures for fast access.

Optional upgrade OMNIVEO 2 and/or 3 SMARTCONTROL MODULE    Energy saving & effective Smart control, go hand in hand

Omniveo wall mounting system.

A new generation of insect control units suitable for real time monitoring of flying insects. With its discreet design it’s recommended for use in shops and restaurants and dry industrial environments.

Real-time monitoring of insects is a huge leap forward.
Easy to service, stylish and effective.

Smart control

The Omniveo Smart Control works through new innovations. By means of a high speed camera. The camera records insects which are lured into the trap onto a glue board by an ultraviolet light source. The data is immediately forwarded to the user.

This is possible thanks to worldwide connectivity over KPN’s LTE-M network (with fallback on 2G) and the IoT platform named Cockpit.



OMNIVEO 2

Electrical supply: 220-240V ~ 50-60 Hz (Other supply upon request)

Effective area: 50 – 100 m2

IP rating: IP 20 or IP 65 (Suited for use in dry or wet areas)

Lamp: 2x 15 W Astron UV-A lamps in Fluorescent or LED execution

Glue board: Scannable blue board technology, multiple size board placement

Approvals: CE / EMC / LVD / RoHS / REACH / ISO 9001 compliant

Guarantee: 2 years on mechanical & electrical performance

Ballast: A Philips Electronic Ballast (fluorescent lamps), 40k hrs lifetime (LED)

Housing: Plastic chassis

  • 2 tubes 15 Watt UV-A shatterproof / 2 LED ASTRON Tubes
  • IP 21 or IP 65 (Suited for use in dry or wet areas)
  • Reaching CE/ RoHS / REACH / ISO 9001 norm
  • Recyclable parts
